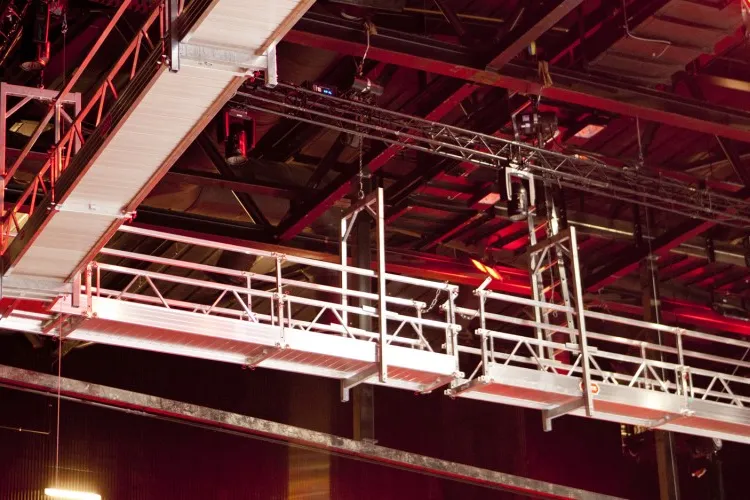

Suspended platforms
Working at great heights requires the most reliable access solution. The Altrex Modular suspended platform system allows for security at the highest level. Suspended platforms, aluminium roof beams and hoists together offer unprecedented opportunities and most of all the highest level of security. Thus you work carefree and full of confidence.
Altrex Specials
If it is not a standard requirement, then a custom-made solution will provide the answer. Altrex will help you find the access solutions to get your job done.
Contact Us
How To: mounting a suspension bridge (CE) using end-bracket
Products

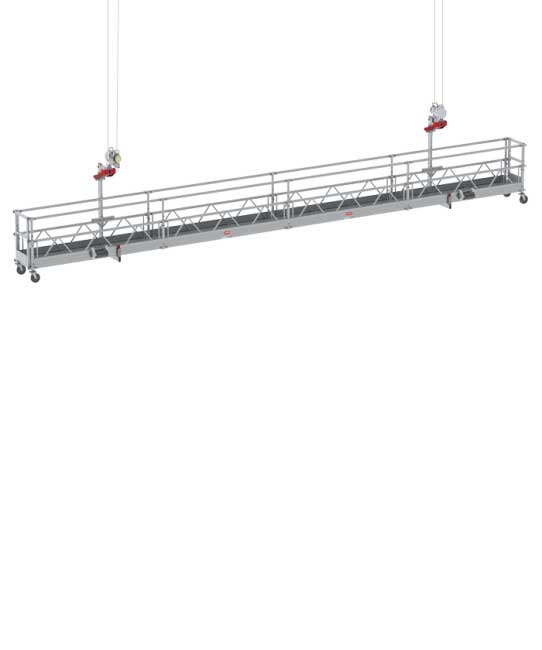

Modular Suspended Platform MHB 60
With the MHB 60, the options are endless. The suspended platform is modular, allowing multiple configurations. The lightweight material is very strong and reliable. The MHB 60 will take you to great heights, safely. It is the best system for maintenance and renovation jobs.
The smart design means that all of the individual components are easy to assemble and dismantle. The components are compact to store and easy to transport. The MHB 60 is available with end and walk-through stirrups. The end stirrups are mounted at the ends of the suspended platform and offer a maximum length of 15 metres between the stirrups. By using walk-through stirrups you can extend that length to up to 21 metres in total. Walk-through stirrups are used if the length of the entire suspended platform exceeds the length between the ropes/hoists.
- • PROFESSIONAL USE
- • Available with end and walkthrough stirrups
- • Unique modular suspended platform system
- • Platform lengths from 1 up to 21 meters
- • Lightweight and strong

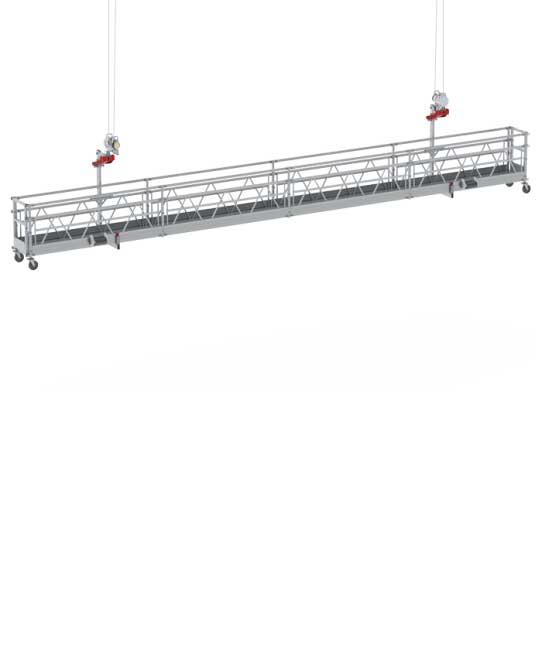

Modular Suspended Platform MHB 80
With the MHB 80, the options are endless. The suspended platform is modular, allowing multiple configurations. The MHB 80 has higher side frames and U-frames compared to the MHB 60. This allows a longer platform length or a higher loading capacity. The lightweight material is very strong and reliable. The MHB 80 will take you to great heights, safely. It is the best system for maintenance and renovation jobs.
The smart design means that all of the individual components are easy to assemble and disassemble. Moreover the components are compact to store and easy to transport. The MHB 80 is available with end and walk-through stirrups. The end stirrups are mounted at the ends of the suspended platform and offer a maximum length of 18 metres. The walk-through stirrups can extend that length to up to 26 metres. Walk-through stirrups are used if the length of the entire suspended platform exceeds the length between the ropes/hoists.
- • PROFESSIONAL USE
- • Unique modular suspended platform system
- • Available with end and walkthrough stirrups
- • Platform lengths from 1 up to 26 meters
- • Lightweight and strong

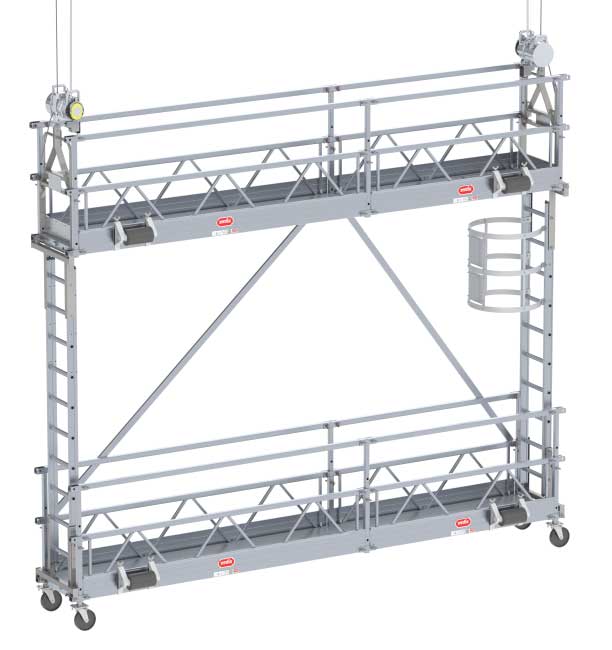

Modular Suspended Platform Double Deck
With the MHB 60 Double Deck suspended platform you can create an additional work platform. Handy if you need to work on two levels simultaneously. The second level is accessible via a hoop ladder and a platform deck with trapdoor. Change level easily and quickly. Working efficiently and effectively has never been easier than with the MHB 60 Double Deck suspended platform.
With just two hoists, you can raise the entire platform to great heights. The modular system means that all of the individual components are easy to assemble and dismantle.The MHB 60 Double Deck suspended platform is available with end- and walk-through stirrups. End-stirrups are assembled to the ends of the suspended platforms. Walk-through stirrups are used if the length of the entire suspended platform exceeds the length between the cables/hoists. Both offer a maximum platform length of 12 metres.
- • PROFESSIONAL USE
- • Suitable for MHB 60
- • Suspended platforms with two working levels
- • Lightweight and strong
- • Multi-level, 3 metres apart

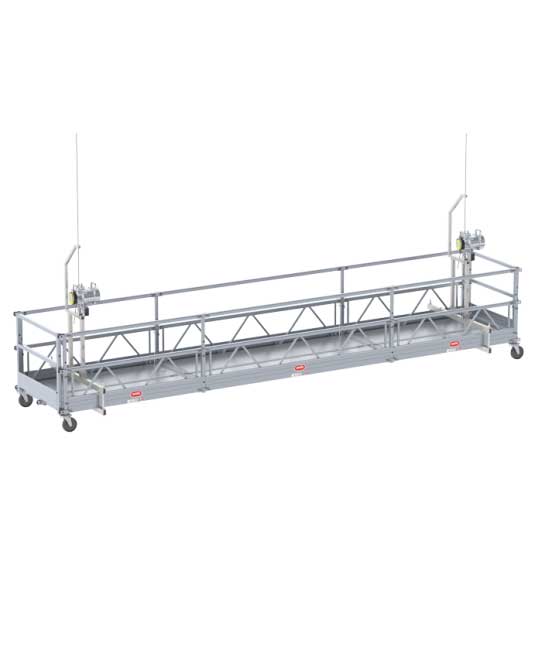

Modular Suspended Platform Double Wide
Create extra work surface with the MHB Double wide. This means more people and/or equipment. A Double wide suspended platform is always customised to you. The lightweight material is very strong and reliable. The MHB Double wide takes you to great height, safely.
The MHB Double wide is based on the successful modular suspended platform systems (MHB). The smart design means that all of the individual components are easy to assemble and disassemble. The components are compact to store and easy to transport.
- • PROFESSIONAL USE
- • Extra wide suspended platform
- • For large working surface areas
- • Lightweight and strong
Boiler Stage
The Davit Arm is a suspension construction for suspended platforms or Rope Access. Robust and reliable. This fixed and compact construction is ideal if space is too limited to install for example roof beams. Improving safety at height.
The Davit Arm is easy to install. The lightweight construction consists of just a few parts. Counter-weights are not required but a safety tie-back is obligatory. Depending on the available space and the required outreach, we can customise the Davit Arm for your specific project.
- • PROFESSIONAL USE
- • Platform lengths from 3 to 12 meters
- • Suspended platform for in boilers and silos
- • Suitable for access bigger than Ø450 mm
- • Ideal for limited access
- • Lightweight and strong

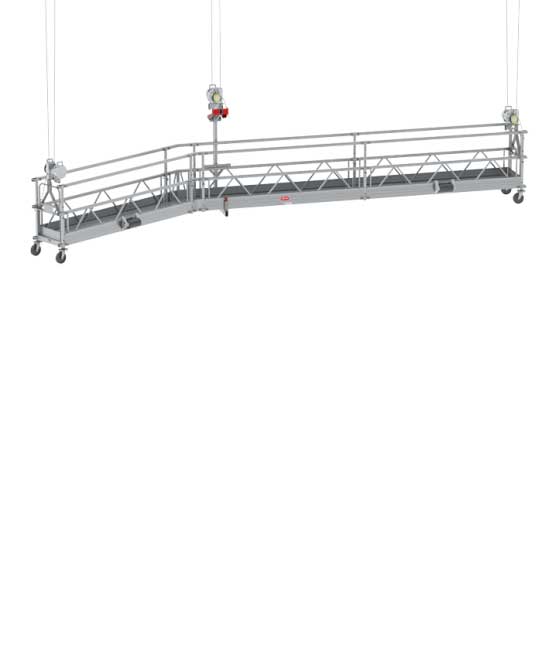

MHB 60 with corner sections
Your maintenance or renovation task requires a suspended platform that can go around corners or follow the shape of a building. The suspended platform with corner sections is exactly what you need. The sections are available in 20 to 90 degrees, depending on the angle required. The lightweight material is very strong and reliable. The MHB 60 with corner sections gives you the flexibility to carry out your task at height.
The suspended platform is available with fixed or adjustable corner sections. The fixed corner sections are ideal if you often carry out the same task or work on the same building. Adjustable corner sections offer greater flexibility. The smart design means that all of the individual components are easy to assemble and disassemble. The components are compact and easy to transport.
- • PROFESSIONAL USE
- • From 20 to 90 degrees
- • Corner section for modular suspended platform MHB 60
- • Available in a fixed or adjustable version
- • Lightweight and strong

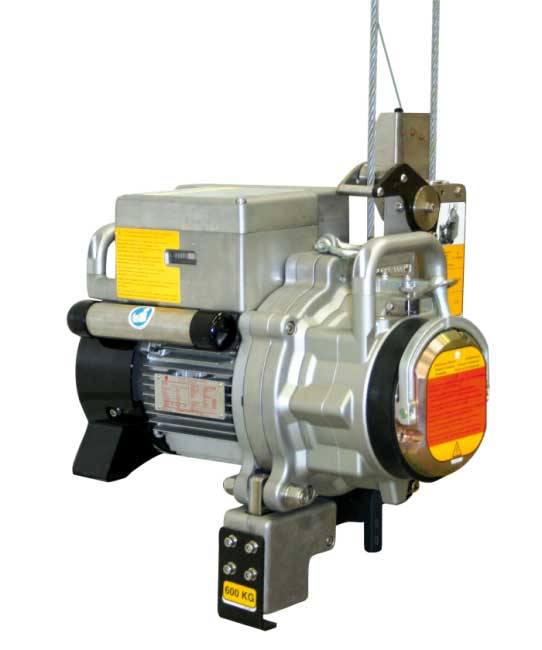

Nihon Bisoh hoists
The new generation traction hoist. This innovative hoist incorporates advanced technology. The unique shape of the cable disk provides grip and stability. Top quality materials make the hoist durable and ensure unparalleled quality. The Bisomac 210 is the best suspended platform hoist for your task at height.
The best hoist ever is available in a 600 and 800 kg versions. The hoist is compact and is easy to handle, using the 2 user-friendly, robust handles. The Bisomac 210 is unique due to its reduced number of parts. The hoist can be maintained in just 45 minutes. And this means less time lost to standstills! It also produces 50% less noise than other hoists.
- • PROFESSIONAL USE
- • The Worlds most advanced traction hoist
- • 1 and 3 phase
- • Available as a 600 or 800 kg version
- • Suitable for MHB 60 and MHB 80
- • Strong, reliable and durable
- • Easy to use
- • Less time lost to standstills

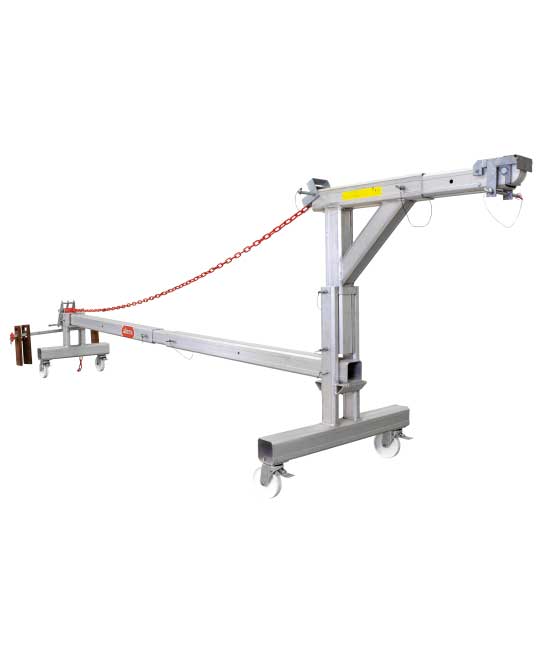

Roof beam
If you're working on a suspended platform, you need to be able to trust the suspension points. Altrex aluminium Roof beams are robust and strong. This unique construction offers maximum load capacities of 600 or 800kg per roof beam.
The Roof beams can be built from just a few parts. No tools required. The mobile construction can be used anywhere. Depending on the height of the parapet, choose a high or low version. With the ergonomically designed counter-weights, the system is as stable as a house.
- • PROFESSIONAL USE
- • Loads between 400 and 800 kg
- • Mobile suspension point for suspended platforms
- • Available as a low or high model
- • Lightweight and strong

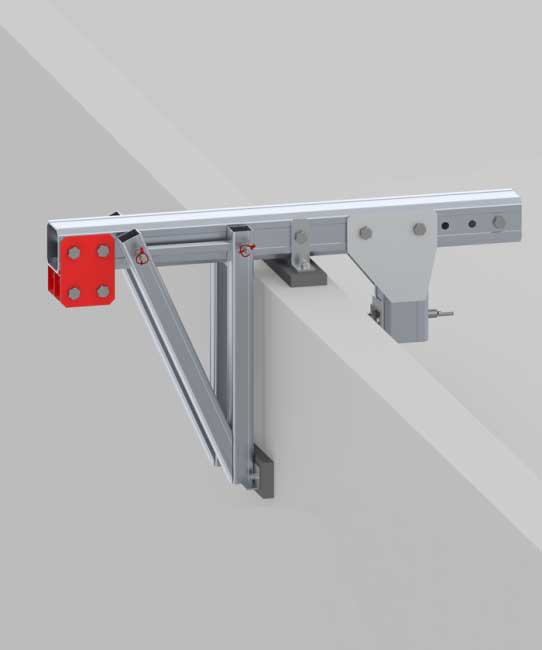

Parapet Clamp
The Parapet clamp is a handy suspension point for suspended platforms. With its small size, it takes up little space on the roof (compared to aluminium roof beams). The clamp is easy to assemble on the roof's parapet. You must ensure that the clamp can take the weight of the appropriate load. The lightweight material is very strong and reliable. The Parapet clamp is available in many sizes. Depending on the height and depth of the parapet and the desired outreach.
- • PROFESSIONAL USE
- • For assembly on a parapet
- • Suitable for MHB 60 and MHB 80
- • Suspension point for suspended platforms

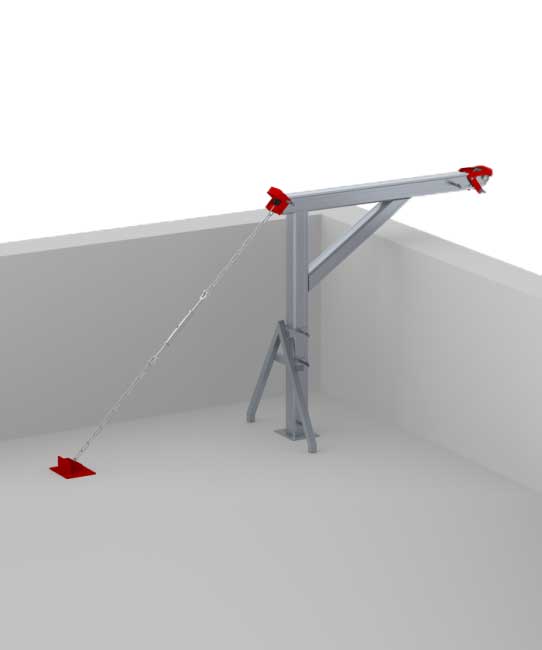

Davit arm
The Davit Arm is a suspension construction for suspended platforms or Rope Access. Robust and reliable. This fixed and compact construction is ideal if space is too limited to install for example roof beams. Improving safety at height.
The Davit Arm is easy to install. The lightweight construction consists of just a few parts. Counter-weights are not required but a safety tie-back is obligatory. Depending on the available space and the required outreach, we can customise the Davit Arm for your specific project.
- • PROFESSIONAL USE
- • Available in several dimensions
- • Suspension point for suspended platforms
- • Suitable for roofs with limited surface areas
- • Lightweight and strong

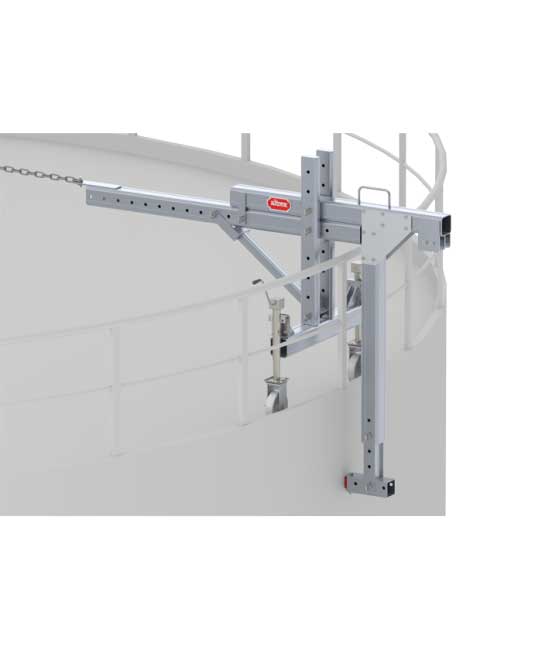

Tank roller
The Altrex Tank roller is an ideal tool for maintaining the exterior of a tank or silo. The Tank roller is easy to install over the roof rail. The construction is mobile and moves easily. With a small suspended platform, you can reach all of the exterior. This makes things more efficient. You'll complete the task in no time.
- • PROFESSIONAL USE
- • Suspension point for suspended platforms
- • Mobile suspension point especially suitable for silos
